6 Inch Double-Frequency Two-Roll Open Mixing Mill with Bearing SPKL-030

Description

In the rubber and plastic compounding manufacturing, open mixing mills play a crucial role in material blending, plasticizing, and refining. Precision, consistency, and control are the keys to producing high-quality materials.

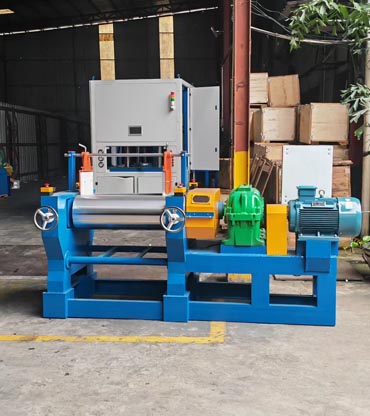

The 6 Inch Double-Frequency Two-Roll Open Mixing Mill with Bearing , also called Dual Inverter Two-Roll Mill , it is a high-precision mixing solution designed for laboratory and small-scale rubber or plastic compounding.
Traditionally, open mixing mill adopt one single-motor before, but as technology evolves, so do the demands for efficiency, flexibility, and automation.
Nowadays , the laboratory two rolls rubber mixing mill are equipped with dual inverter (VFD) motors, this two roll mill allows independent speed control of each roll, which provide precise adjustment of friction ratio for optimal material blending.

Can One Laboratory Mixing Mill Be Used for Both Rubber and Silicone? Welcome to visit here

The Double-Frequency Two-Roll Open Mixing Mill with Bearing is a high-performance rubber mixing solution which is specially designed for laboratories, pilot plants, and industrial production lines. By combining double-frequency motor control with a precision bearing-type roll structure. Compared to traditional single-frequency systems, this two roll mixing mill machine with double frequency delivers enhanced control, energy efficiency, and mixing performance .Besides ,it also feature superior mixing efficiency, stable operation, low noise, and long service life.

Such double frequency open mixing mill equipment is widely used for mixing, plasticizing, sheeting, and dispersing rubber , PVC and elastomer compounds, including natural rubber (NR), synthetic rubber (SBR, NBR, EPDM), silicone rubber, and rubber masterbatches etc.

Want to learn how two roll mixing mill process PVC ? Please visit this blog page How Does a Lab Two-Roll Mill Work for PVC Material?

High-Quality Alloy Steel Rolls

The two rolls are manufactured from high-strength alloy chilled cast iron or forged steel, precision-machined and mirror-polished to ensure:

* Uniform roll surface temperature
* Excellent wear resistance
* Stable gap control and sheet thickness
* Long service life with minimal surface degradation

Optional electric or oil heating and water cooling systems method are available to satisfy your specific different processing needs.

Welcome to visit t0 Learn More What Is a Double-Frequency Open Mixing Mill ?

Advanced Double-Frequency Drive System

This two roll open mixing mill equipment adopts a double-frequency inverter control system, which allow independent frequency control and separate speed control of the front and rear rolls. Compared with traditional single-frequency mixing mills, this double frequency open mixing mill design offer multiple advantage as follows:

1. Precise control of roll speed and friction ratio independently
2. Flexible adjustment for different rubber formulations
3. Smooth start-up and stop, reducing mechanical shock
4. Improved dispersion efficiency and mixing uniformity
5. Bearing-Type Roll feature Low Noise & Long Life

Different from conventional bush-type open mixing mills machine, this double frequency open mixing mill with bearing features a bearing-supported roll structure, which offer several performance advantages as follows:

* Lower friction and reduced heat generation
* Significantly lower operating noise
* Higher rotational accuracy and stability
* Reduced maintenance frequency

High-quality heavy-duty bearings are sealed and lubricated, ensuring long-term reliable operation even under continuous production conditions.

These two rolls of lab two roll mixing mill are manufactured from high-strength alloy chilled cast iron or forged steel, precision-machined and mirror-polished to ensure:

* Uniform roll surface temperature
* Excellent wear resistance
* Stable gap control and sheet thickness
* Long service life with minimal surface degradation

Technical Specifications (Typical Configuration)

This double frequency open mixing mill machine supports both small-batch experimental mixing for laboratory in university & institute and continuous industrial operation for mass production.

Technical Highlights

* Roll Size: 6” × 13”
* Motor System: Dual inverter-controlled motors
* Roll Material: Hardened alloy steel, mirror-finished
* Bearing Type: Heavy-duty precision bearings
* Control System: PLC + Touch Screen
* Friction Ratio: Adjustable 1:1.1–1:1.4
* Cooling System: Internal water circulation
* Application: Rubber, silicone, EVA, thermoplastic materials
* Power Supply: 380V , 460V/ 50Hz (customizable)

Wide Applications

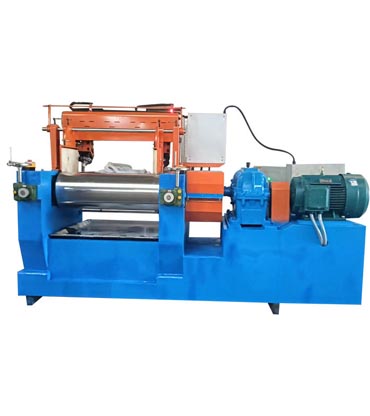

The Double Inverter Bearing Type Open Mixing Mill is suitable for:

* Laboratory rubber compound preparation
* Rubber product manufacturing plants
* Plastic and polymer blending (PVC, EVA, silicone)
* Tire and rubber component factories
* R&D formula testing and quality control
* Silicone rubber and elastomer processing
* Color masterbatch and additive dispersion
* Universities and research laboratories

With its advanced drive control, robust bearing design, and reliable mixing performance, the Double-Frequency Two-Roll Open Mixing Mill with Bearing supports both small-batch testing and large-scale continuous operation. It is an ideal choice for manufacturers are looking for higher efficiency, better compound quality, and lower operating costs.

This mixing mill equipment is available in new, refurbished, and customized versions to meet different production needs.
