Description

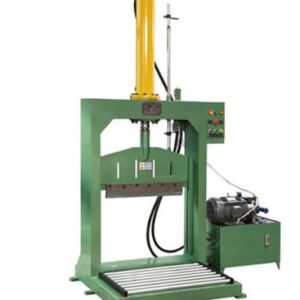

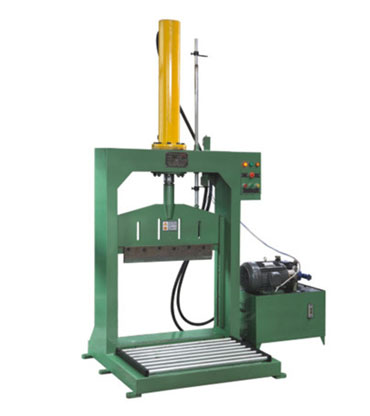

The rubber cutting machine mainly consists of rubber knife, frame,cylinder, oil pump,base, hydraulic system and electric system.
The machine is a frame structure, its cutting knife is controlled by hydraulic system, and reciprocating motionand ,and the cutter is directly mounted on the piston rod of the upper cylinder, and has a simple structure and is easy to operate.
When working, just put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber as per your needs into designed thickness and size.
This rubber bale cutter machine is mainly used for cutting natural rubber ,synthetic rubber into small pieces for plasticating and mixing.
The guillotine bale cutter equipment features a welded steel frame and heavy duty pneumatic cylinder to assure a long service life as well as reduced maintenance.
The replaceable cutting knife is made of high quality very hard carbon steel , it is easy and convenient to be removed for re-sharpening or replacement.
It is precisely directed by high strength nylon guides to register against a cast urethane cutting pad, both of which are easily and inexpensively replaced as required.
Out rubber bale cutter machine is suitable for cutting material such as rubber sheet, leather, plastic material, vacuum foaming products, nylon, EPDM rubber , silicone rubber , NBR,paper boards and synthetic.
Specification
| Type | Width (mm) | Stroke (mm) | Diameter of the piston (mm) | Time Taken by the Stroke (second) | Power (KW) | Overall Dimension (LxWxH) | Weight (kg) |
| SMP-8 | 660 | 680 | 150 | 16~25 | 5.5 | 1900×720×2580 | 1500 |
| SMP-10 | 1000 | 1000 | 150 | 10~16 | 7.5 | 2240×720×2580 | 1800 |
| SMP-12 | 1000 | 1200 | 150 | 10~16 | 7.5 | 2540×750×2880 | 2000 |
How Does Rubber Bale Cutter Work?
The high-precision hydraulic-powered rubber bale cutter are used to cut rubber into pieces as per speicific needs. The rubber bales or block can be fed through the machine. These rubber piece cut travels through the rubbe bale cutter machine which ensures smooth movement.
1. Check blade is in the up position.
2. Open the gate.
3. Place slab of rubber along the cutting edge.
4. Leave the cage area and close the gate.
5. Press the cut button to lower the blade to cut the rubber slab.
6. Blade rises after the cut sequence; wait until the blade is fully up.
7. Open the gate to remove the cut pieces.
8. Repeat the cycle.
A Wide Of Application
The Simptek Rubber Bale Cutter is very flexible and is is used for cutting all kinds of large sized natural rubber or synthetic rubber products, such as large plastic tubes, film, rubber lumps, and sheet materials , it is also very applicable for other plastic ,polymer,silicone including:
Silicone
Nitrile Bale
NBR
FKM
CR
HNBR
ACM
EPDM
SBR
EVA
Bench bale cutter
Slicing type
Cross blade type
And many more…
