Description

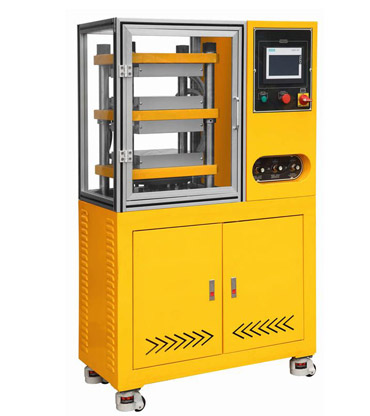

This high-precision PLC control hydraulic press vulcanizing machine is equipped with a PLC program control system with a touch screen, it is equipped with a high-performance hydraulic system with automatic pressure compensation function.
The vulcanizing press machine consists of host, hydraulic systems, electrical control system, it is divided into upper and lower double plates frame structure and adopt the forming mold and precision guidepost.
This vulcanizing press equipment has a device of pressure, time, automatic temperature control device, it can set pressure, temperature, time, and exhaust times and seconds. The rubber vulcanizer machine feature PID temperature control to fast heat and precisely control the temperature.
The rubber vulcanizer press machine has two working layers, its upper one is for the heating plate, which is heated by electricity and its lower one is a cooling plate, which is cooled by a tap water cooling system.
Our hydraulic press vulcanizer machine has the advantages of simple structure, high pressure, wide applicability, and high efficiency, they are suitable for rubber, plastic, resin, and other polymer materials compression molding, etc.
We custom and supply a variety of vulcanizing press machines, the capacity range from 10ton to 100 ton.
Technical Parameters
* Temperature range: ~300 C at room temperature
* Temperature control accuracy: + 1 degrees centigrade.
* Heating mode: stainless steel heating rod.
* Pressing plate size: 300 x 300 x 60mm
* Opening distance: 0~150mm
* Pressboard material: SKD chrome molybdenum alloy
* Pressure plate hardness: hard chrome plating on the surface. The surface hardness is more than HRC60
* Work layer: 1 work area, upper and lower pressure plate with heating and cooling function.
* Cooling mode: through water cooling, after the heating process, the system automatically switches to a cooling state.
* Gradient pressure: 2 segments, first and second stages can be preset.
* Exhaust times: 0~10 times
* Pressure sensor: 0-20Mpa
* Oil pressure system: GPY oil pump drive cylinder.
* Security protection: self-locking safety viewable door
* Motor Power :2.2kw
* Outline size (LXWXH): 950 x 500 x 1470mm
* Control system: SIEMENS control system, 7 Inch Touch screen. Display operation page
Feature of Rubber Vulcanizing Press
* Compact size for laboratory use ,stable temperature and low noise
* Adopt imported digital model KDB high carbon steel solid pressure plate
* Customized design and make plate as per your needs
* With two laminated plates ,the upper plate is heated by electricity and the lower layer is cooled by circulating water
* Equipped with an oil press system and security kick door.
* P.I.D temperature system control
* Available in either Button control or PLC touchscreen model for selection
* East to operate ,accurate temperature and free maintance
What Is Vulcanized Rubber Used For?
Vulcanization gives rubber its characteristic more elastic and durable quality ,it is vital for rubber,silicone,plastic polymer industries . the vulcanized rubber material can be used to produce many products ,including soles of shoes, hoses, hockey pucks, bowling balls, toys, tires, bouncing balls, and much more.
How Do Vulcanizing Press Work?
Vulcanisation is a thermochemical process which is vital for rubber industries. The rubber vulcanization includes a series of complicated chemical reactions with sulfur,accelerators and additives,it promotes cross-linking between rubber molecules , in order to improve the strength, abrasion, and aging resistance of the rubber. The vulcanized rubber material become more flexible ,elastic and durable than rubber that has not been vulcanised.

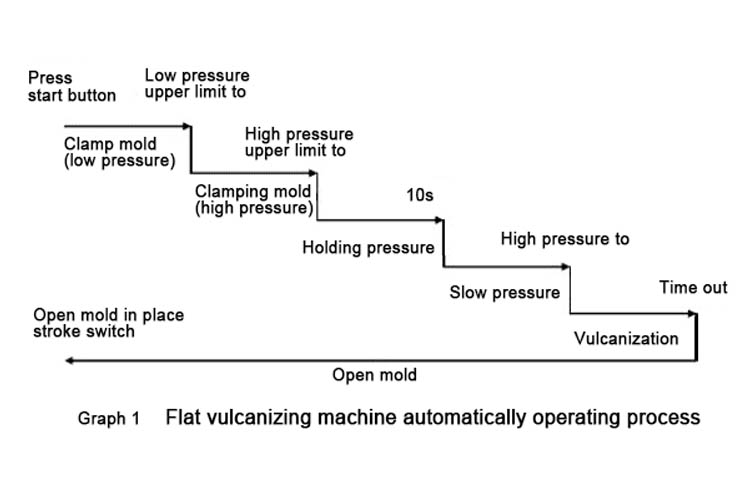

On the process of vulcanization , the rubber material are placed between two flat heated to a specified temperature . After high temperature and high pressure ,the rubber vulcanization is pressed into the desired shape . Here is the process of vulcanization as follows:
1. Pre-treament for Material :the rubber material to be vulcanized needs to be pre-treated, for example the material should undergo these process ,such as rubber cutting, crushing & blending, and mixing & kneading.
2. Charging and Loading Mold :the material treadted are sent to the rubber vulcanizer equipment for curing .The material are usually mixed with additives such as vulcanizing agents, accelerators, preservatives, and fillers to form a uniform rubber mixture.
3. Setting Heating & Pressure :Set some certain temperature and pressure ,process time for the vulcanization machine,which are controlled by PLC system .
Basically ,the vulcanization temperature can be adjustable as per different rubber materials and vulcanization requirements （）between usually between 140°–180° ). The vulcanization time is usually longer and can last from a few minutes to several hours.
4. Cooling and Curing: When the vulcanization reaction is completed, the hydraulic vulcanizing press machine starts the cooling system to cool the vulcanized rubber products, to cure their shape and structure.
Application of Vulcanization
The vulcanized rubber material feature higher tensile strength and thermal stability and durability ,it is 10 times more stronger than natural rubber. The vulcanized rubber material can be widely used to produce many products ,including
Shoe soles
Hockey pucks
Bowling balls
Motor mounts
Suction cups
Rubber Seals
Rubber O-rings
Conveyor Belts
Foam Plastic
Thermosetting Plastic
Cell Phone
Keyboard
Sealing Seal
Medical Silicone Products
Sports Equipment
Toys
Erasers
Hockey Pucks
Shock absorbers
